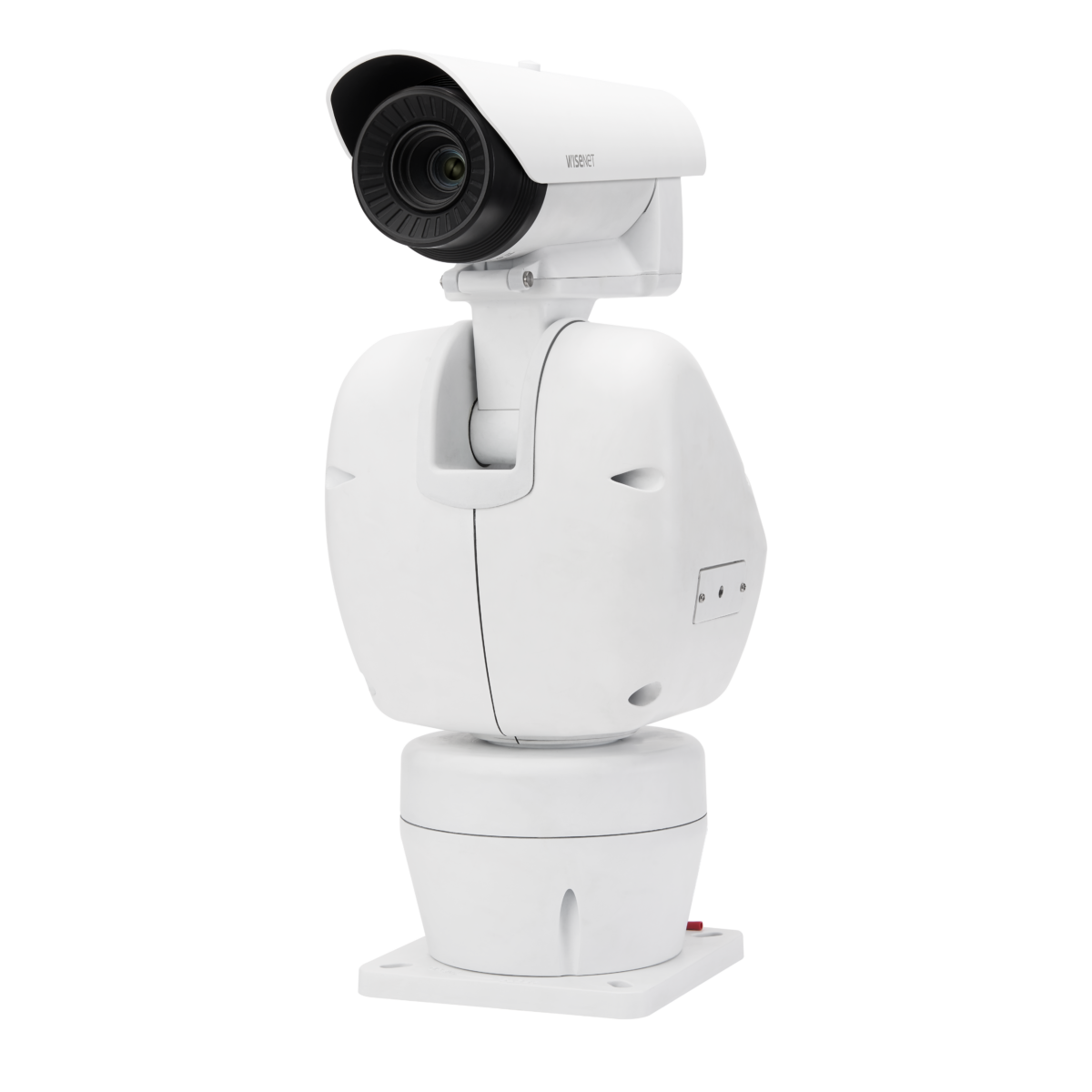

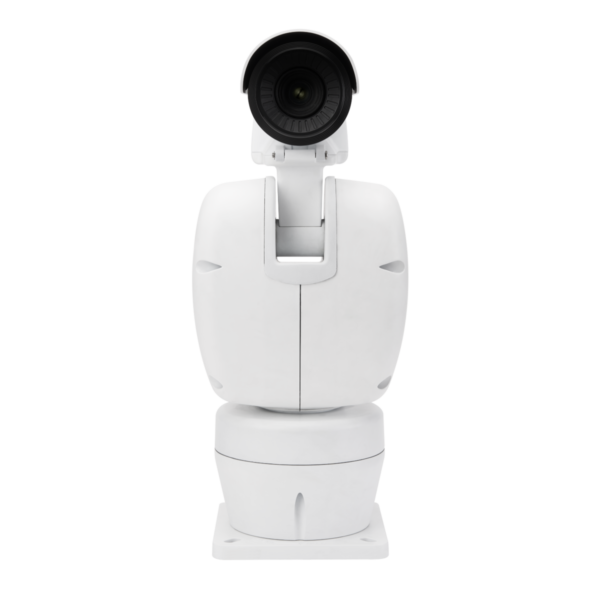

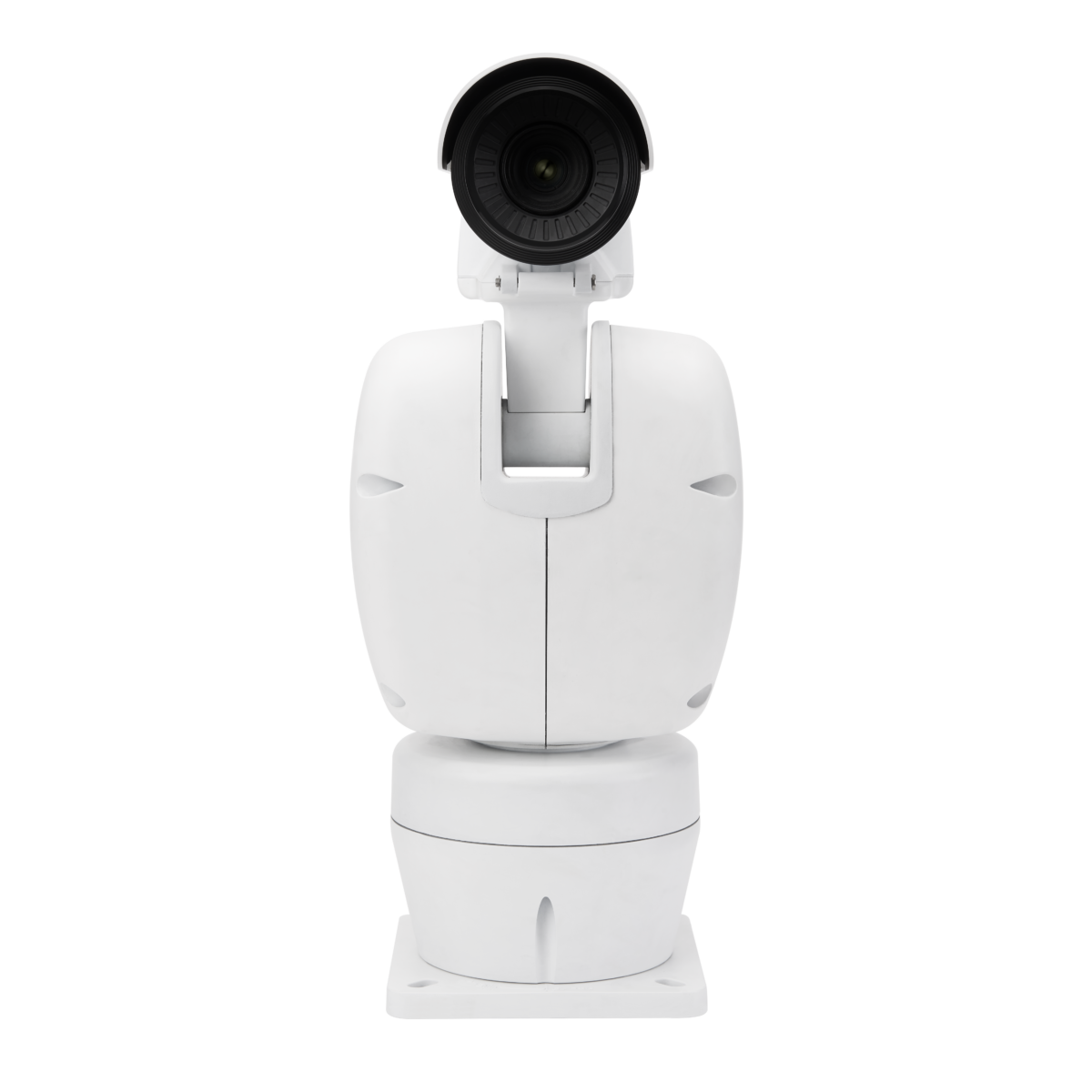

La TNU-4041T est une caméra thermique VGA à positionnement qui offre des capacités de surveillance thermique avancées pour une variété d’applications
Caractéristiques principales
| Video | ||
|---|---|---|
| Imaging Device | Uncooled micro bolometer | |
| Resolution | 640×480, 640×360, 320×240 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| NETD | ＜50mK | |
| Pixel size | 17㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 19mm fixed focal | |
| Max. Aperture Ratio | F1.0 | |
| Angular Field of View | H: 32° / V: 24.3° / D: 39.2° | |
| Min. Object Distance | 11m(36.09ft) | |
| Focus Control | Fixed | |
| Pan / Tilt / Rotate | ||
| Pan Range | 360° Endless | |
| Pan Speed | 0.025°~120°/sec | |
| Tilt Range | -90° ~40° | |
| Tilt Speed | 0.025°~40°/sec | |
| Sequence | Preset(300ea), Group(6ea) | |
| Preset Accuracy | ±0.3° | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Direction Indicator | Supoort | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP | |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
|
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| General | ||
| Webpage Language | English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66, IK10, NEMA4X | |
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC: Max 84W(Heater on), Max 62W(Heater off) | |
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | (W)219×(H)528×(D)335mm(8.62×20.79×13.19″), 11.7Kg(25.79lb) | |
